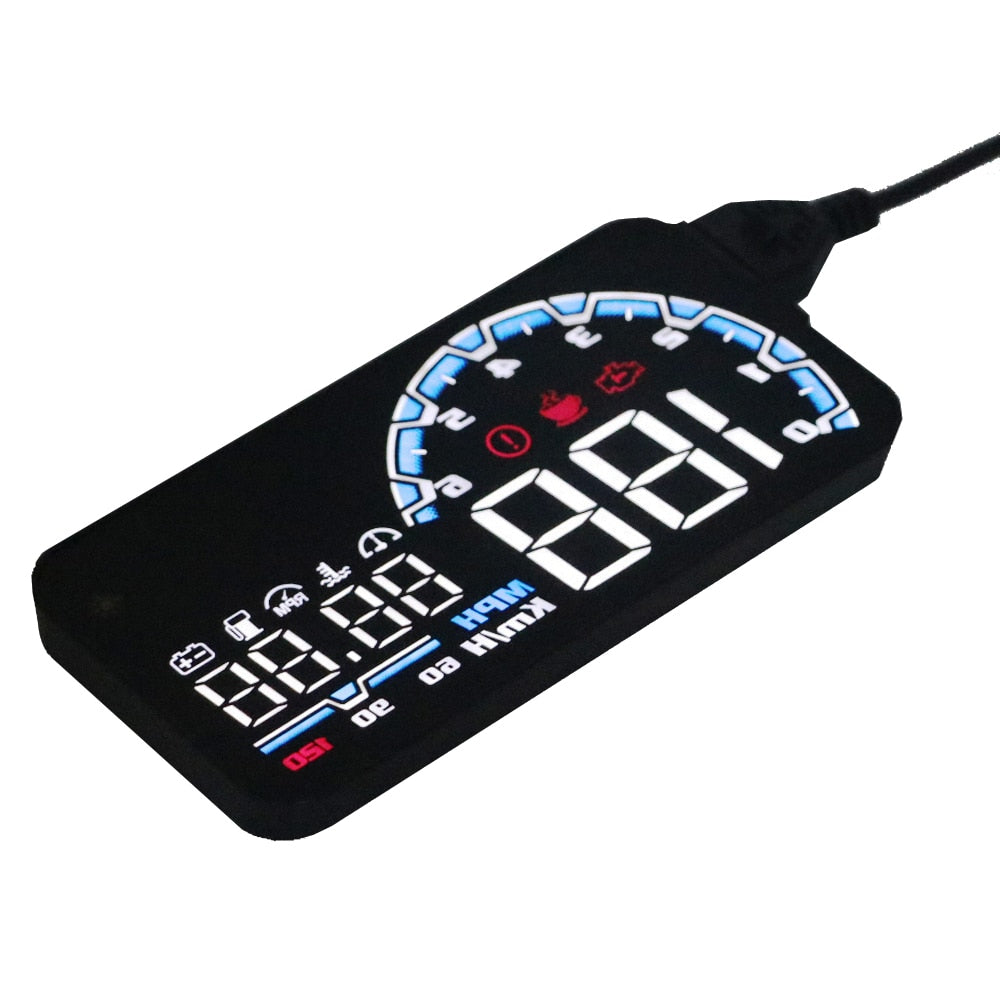

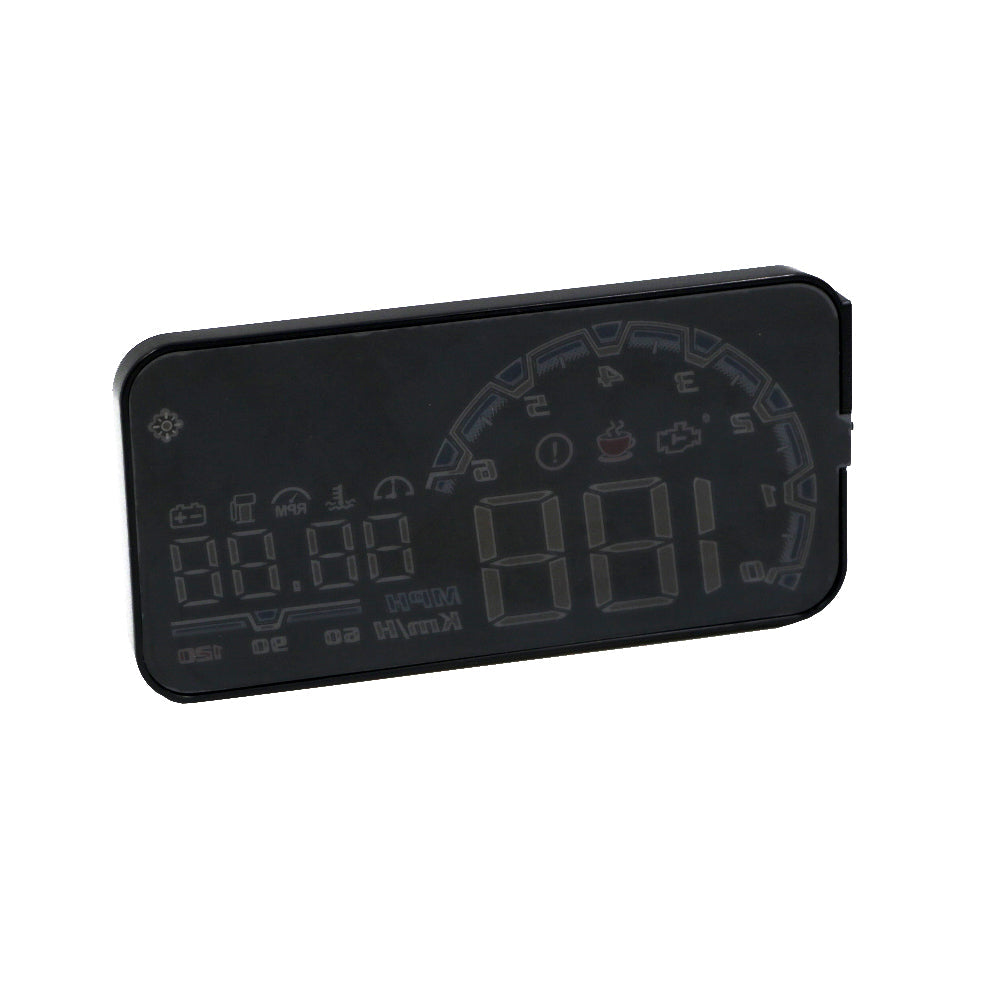

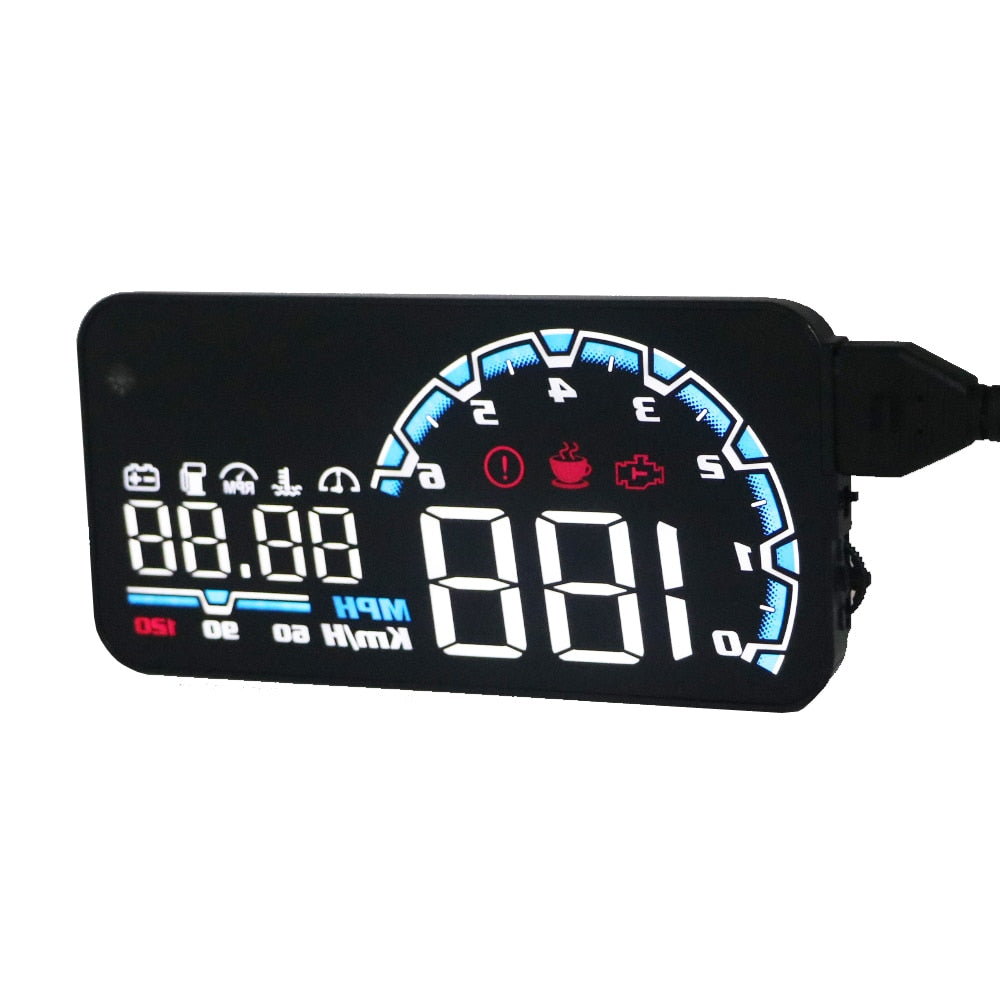

Premium Car Heads Up Display
Our Premium Car Heads Up Display was designed to make it easy to pay attention to the car speed without having to take your eyes off of the road. Equipped with a special reflective lens, this head-up display directly detects the speed of the car after the cables are connected to the car.

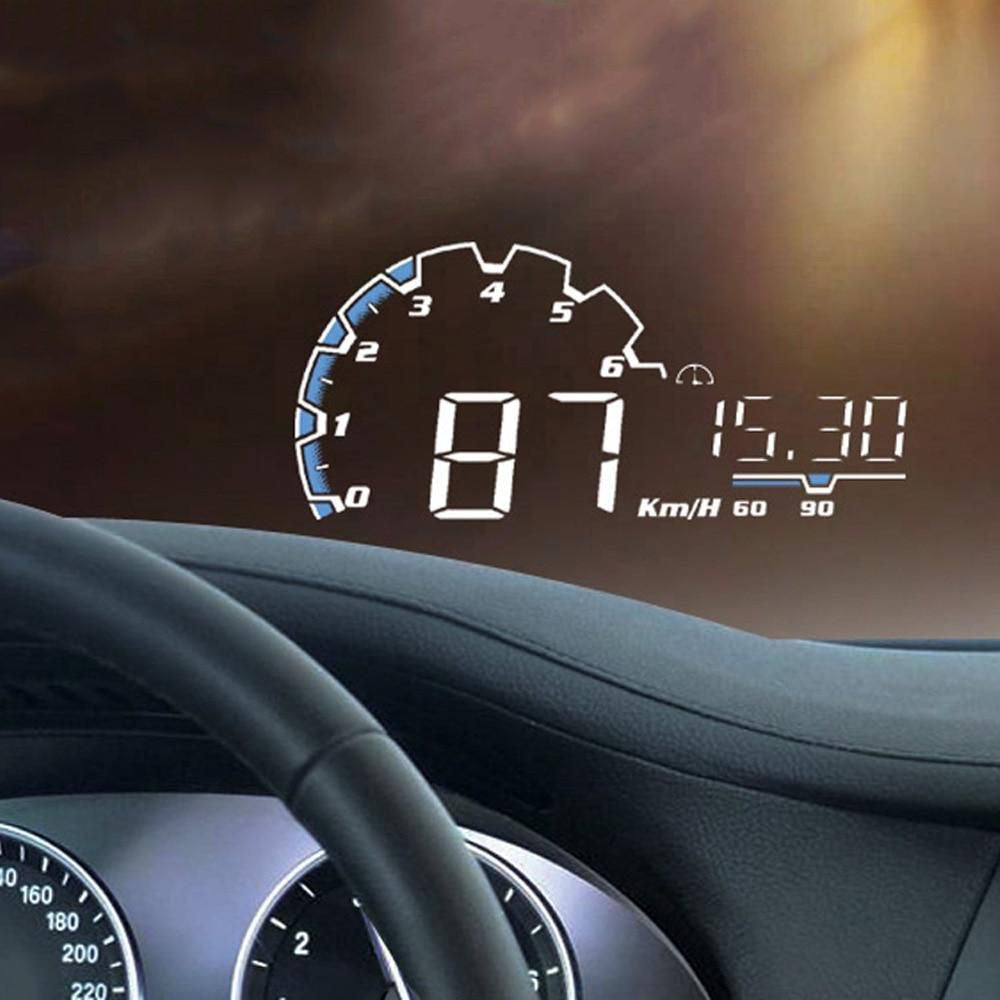

The screen on the heads up car display has a high range of brightness which is adjusted automatically depending on the environment outside. Once the car starts moving, the car HUD will display the speed in very big & bold letters on the windshield.
The best part of all, the HUD display is extremely small in size and takes up little to no space on the dashboard. It comes with a special sticky pad that ensures that once installed, the car HUD display does not move around or slide due to road conditions.
- LED High-Definition Color Display: The display uses advanced metal nanotechnology to eliminate excess reflection and deliver a clearer screen display.
- Automatic Sensitivity Adjustment Brightness: It offers automatic brightness adjustment as well as manual adjustment options. This allows you to customize the display brightness according to the ambient light conditions, ensuring optimal visibility.
- High-Performance Processing Chip: Equipped with a high-performance processing chip, this HUD delivers strong performance and compatibility. The dual-run memory and dual-core processor ensure smooth and high-speed operation.
- Temperature Resistant PC Material: The HUD is made from PC (Polycarbonate) material, which is resistant to high temperatures and extreme cold. This ensures the device’s durability in various weather conditions.
- Color LED Screen High Brightness Display: The display screen features high brightness and vibrant colors for clear and vivid information display.
- Easy Installation: Installation is user-friendly and hassle-free, with a plug-and-play design.
- Glare-Blocking Hood: The HUD comes with a hood that helps block glare while driving, further enhancing the clarity of the displayed information.

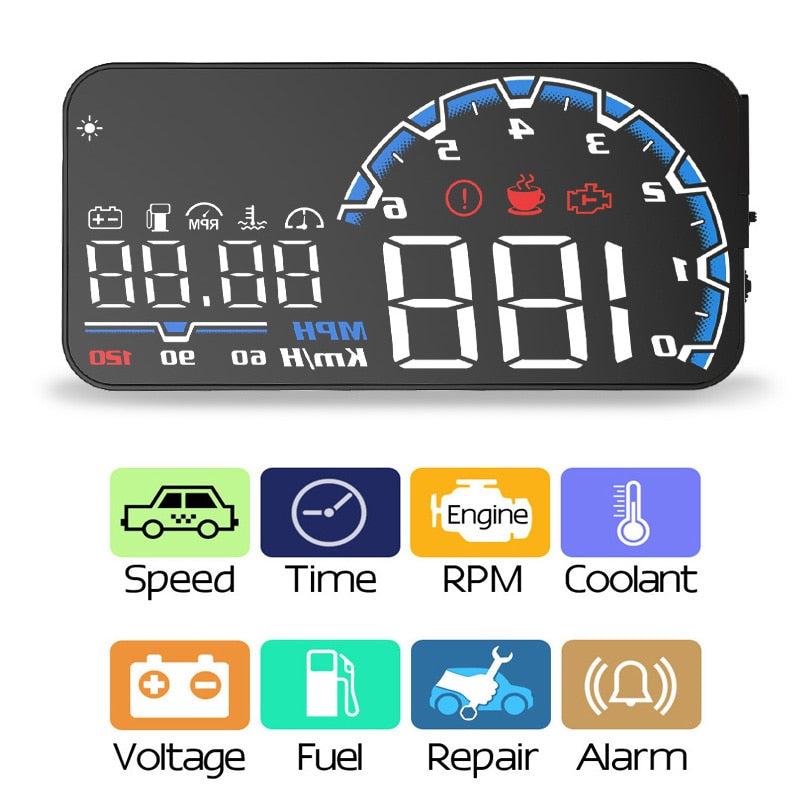

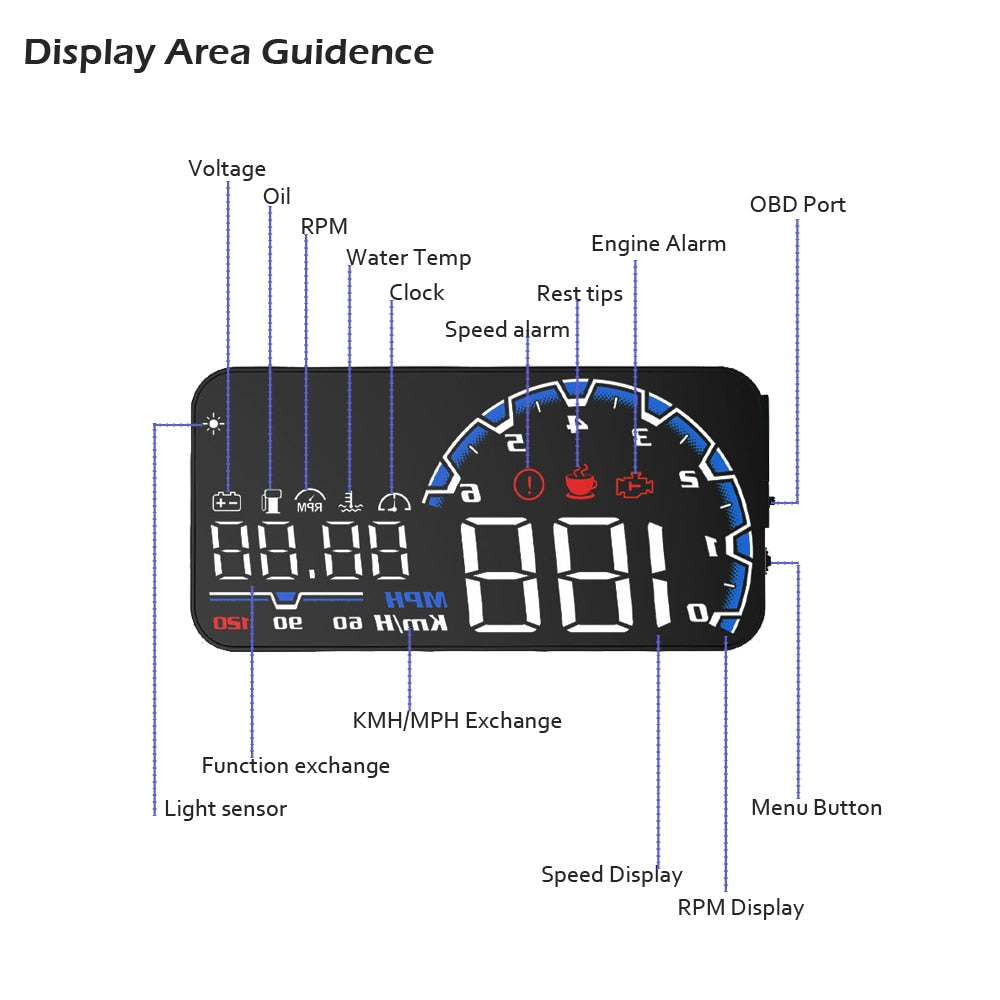

- Data Display: It provides a variety of real-time data including driving speed, RPM (Revolutions Per Minute), tank temperature, battery voltage, mileage, automatic power on/off functionality, and the ability to switch between kilometers per hour (km/h) and miles per hour (mph). Additionally, it can detect and clear car error diagnosis codes without requiring professional equipment.
- Alarm Functions: The HUD is equipped with alarm functions that alert the driver when the speed exceeds a certain threshold, the voltage is too low, or the water temperature is too high. These warnings enhance safety while driving.
- Multiple Display Modes: It offers four display modes: standard mode, compact mode, competitive mode, and mileage calculation mode. There are 16 different display screens available, and users can easily switch between them with a single button press.
Environment temperature – 40 °C – +120 °C
Barometric press 86 – 106KPa
Relative humidity 10% – 95%
Environment voice <=60dB
Work voltage 11V – 18Vdc (12Vdc/200mA)
Sleep current <=30mA
Display way virtual image reflection
Display channel LED display
Reflector transmittance 98%
- 1 x M8 Car HUD
- 1 x OBD Cable
- 1 x Reflective Film
- 1 x Non-Slip Mat
- 1 x User Manual
